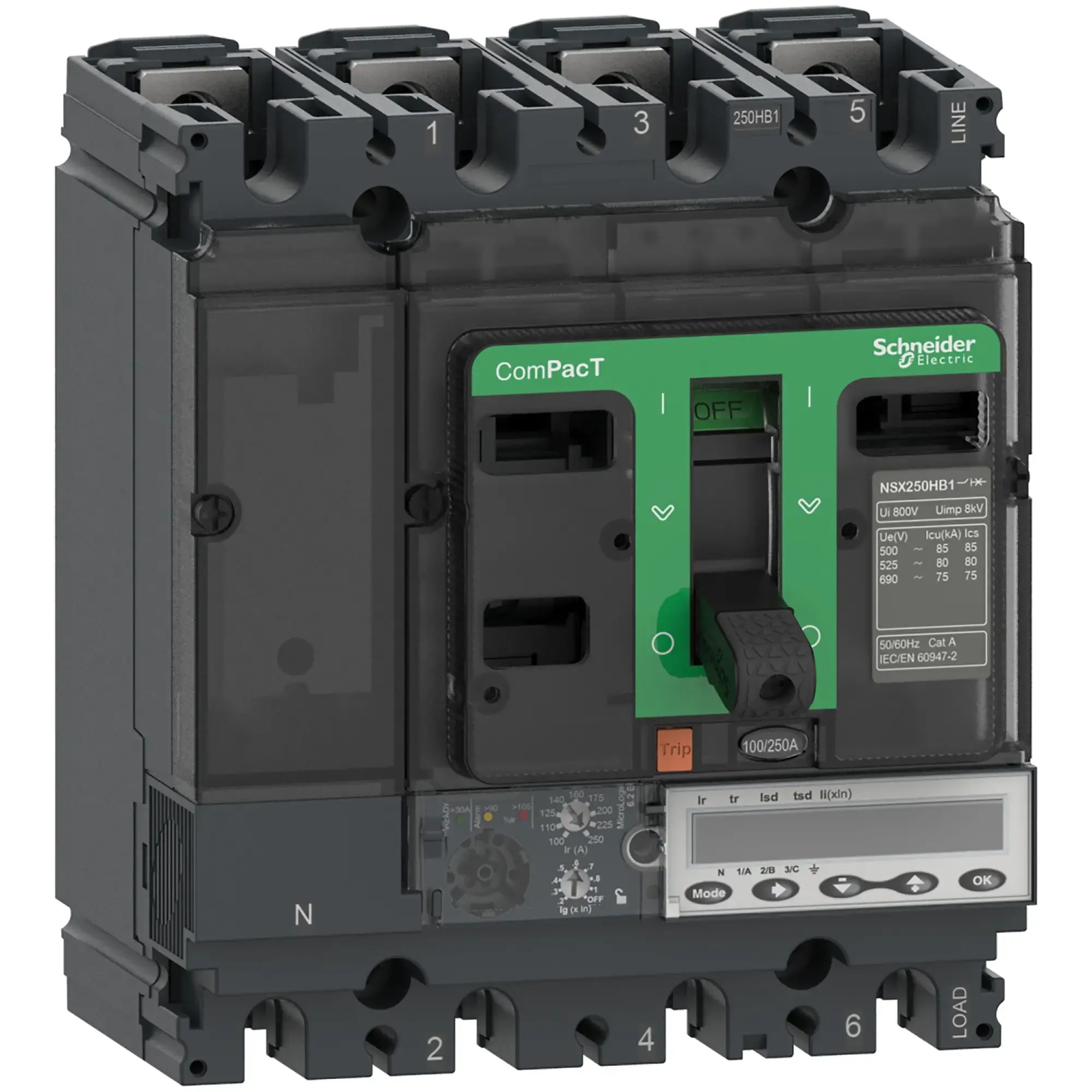

Schneider Electric C10R46E100 Interruttore, ComPacT NSX100R, 200kA/415VAC, 4 poli, Sganciatore MicroLogic 6.2E 100A

This ComPacT NSX100R is a complete 4P 4d circuit breaker in fixed assembly, designed to optimize space and switching capacity. It is an optimal choice for all standard and special applications. The breaking capacity (Icu) is 200 kA RMS at 415 VAC 50/60 Hz and 45 kA RMS at 690 VAC 50/60 Hz. The operating voltage is 690 VAC 50/60 Hz. This product is equipped with an electronic MicroLogic 6.2 E trip unit with a rated power of 100 A and an adjustable ground fault protection (OFF position). The MicroLogic 6.2 E trip unit offers adjustable long-term, short-term, and instantaneous protection. MicroLogic 6.2 E features an integrated display for fine-tuning and displaying the energy meter. This 4-pole version (140mm x 161mm x 86mm) is supplied with a variety of optional features and accessories. It complies with international standards (IEC 60947), CCC, EAC, and marine specifications. ComPacT NSX100R is part of Schneider Electric's EcoStruxure Power architecture.
