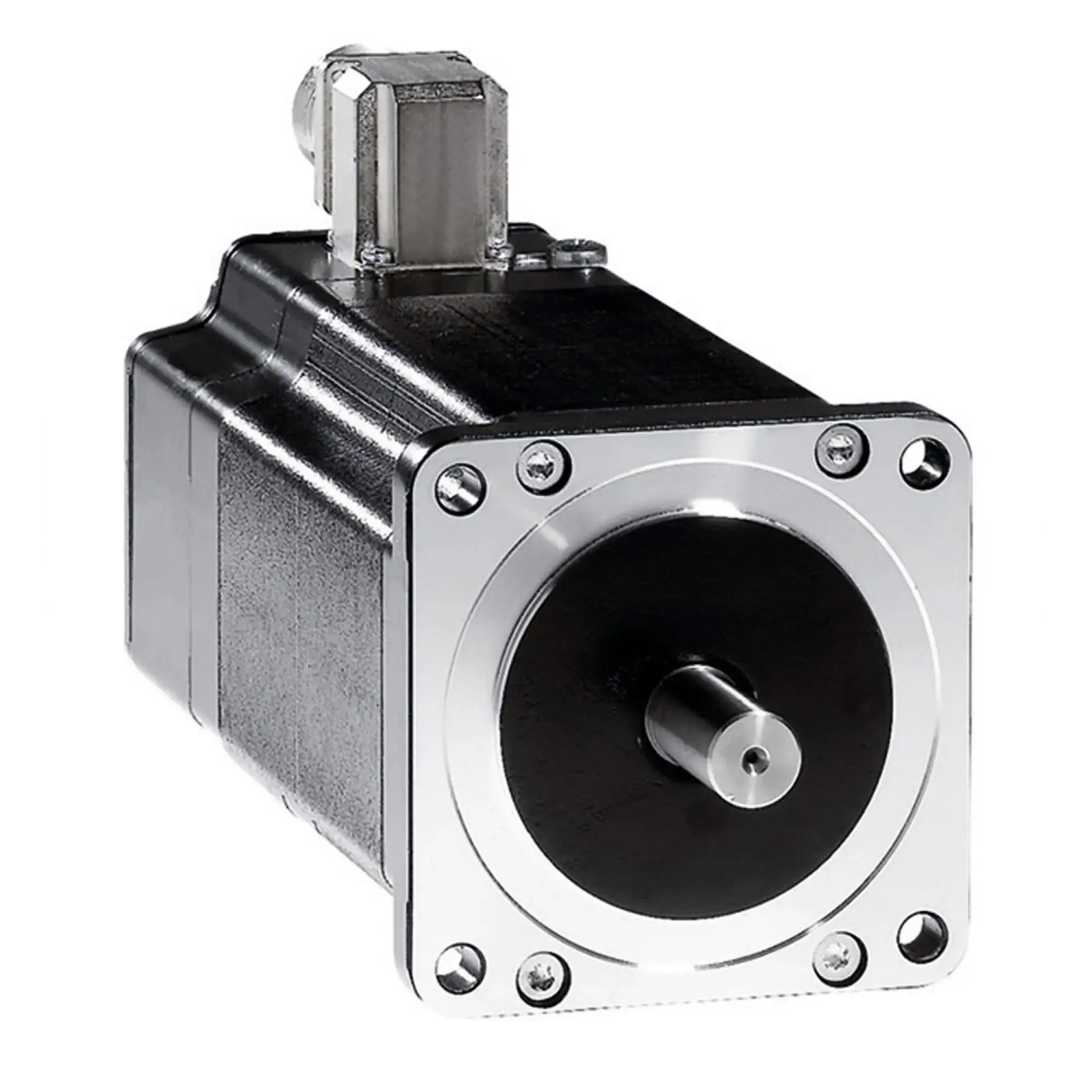

Schneider Electric BRS39BH470AAA VRDM3913/50LHA OOIP41 OO D4O 73 OOOS400

Three-phase stepper motor from the Lexium BRS3 series. This series of motors is characterized by its robust construction and optimized internal geometry, which ensure a very powerful stepper motor and minimize maintenance efforts. This motor has a holding torque of 5.65 Nm. The flange size is 85 mm, the motor length 128 mm, and the centering collar 73 mm. The shaft has a diameter of 14 mm, is smooth, and the protection class of the shaft end is IP41. The motor housing has a protection class of IP56. There is no encoder present. The nominal supply voltage is 48 VDC and the connection is made via a cable with free ends. A holding brake is not mounted on this motor. Movements are carried out precisely, step by step, which are defined by a Lexium SD315 stepper motor amplifier and are perfectly matched to each other.
