47392
Schneider Electric 47392 Meccanismo a motore - MCH - 100...130 V CC
1.621,93 €
% 2.226,49 € (27.15% risparmio)
Disponibile, tempi di consegna: 4-6 Giorni lavorativi
Codice prodotto: WST8810006228
Manufacturer: Schneider ElectricP/N: 47392
Info sui prodotti "Schneider Electric 47392 Meccanismo a motore - MCH - 100...130 V CC"
Schneider Electric Meccanismo a motore - MCH - 100...130 V CC
Schneider Electric 47392
EAN 3303430473923
Description

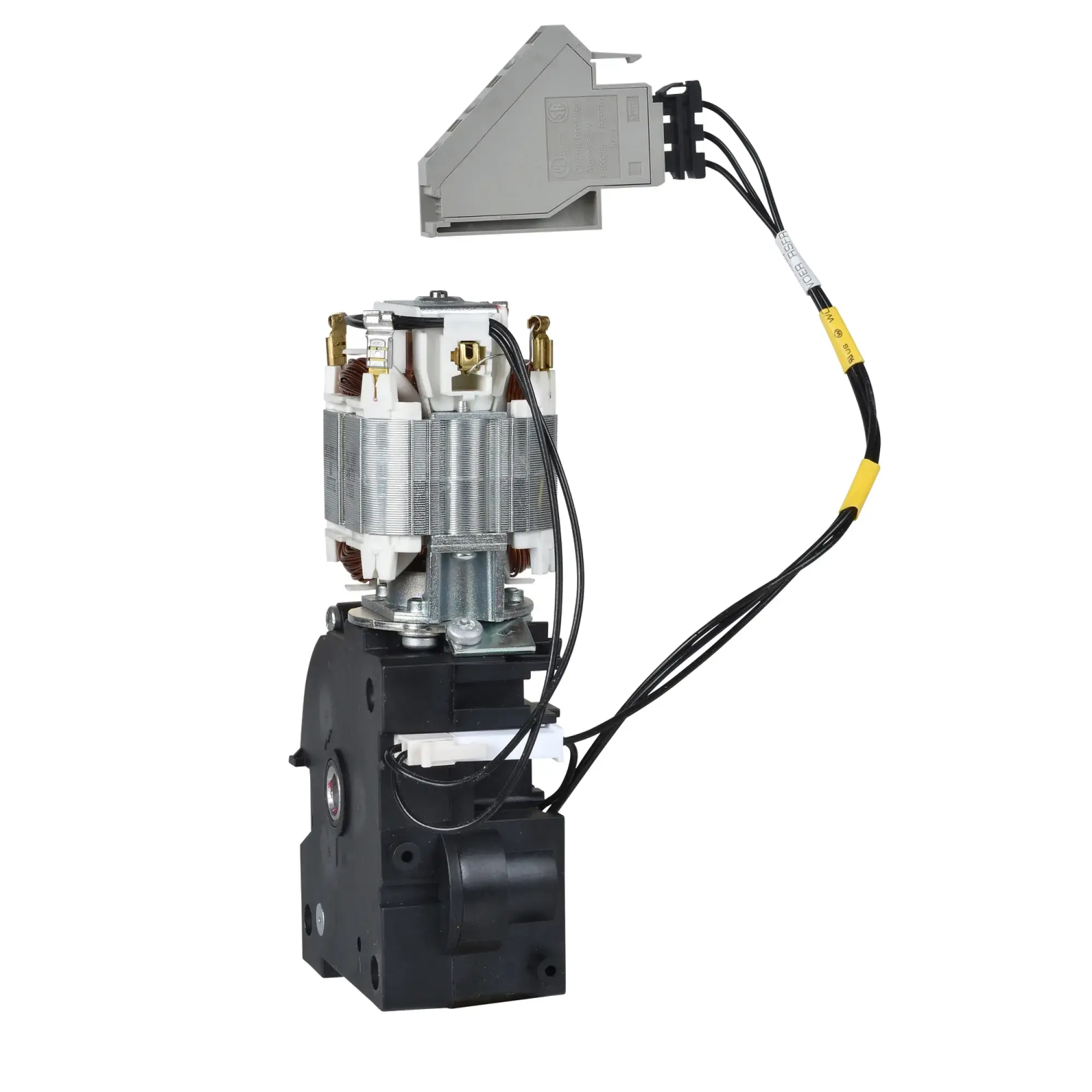

This MCH motor drive is used for the remote control of the MasterPact NT/NW circuit breaker. The motor drive ensures a switch-ready actuation mechanism. In conjunction with an XF closing coil and an MX opening coil, the MasterPact can be switched on and off. MCH Motor Drive 100/130 VDC for MasterPact NT Fixed installation This motor drive can only be ordered in conjunction with a configured circuit breaker.
Documents & Downloads
Product Attributes
| Ausführung des Schaltantriebs | Motorantrieb |
|---|---|
| Bemessungssteuerspeisespannung AC 50 Hz | -V |
| Bemessungssteuerspeisespannung AC 60 Hz | -V |
| Bemessungssteuerspeisespannung DC | 100V |
| Spannungsart zur Betätigung | DC |
Technical data
| P/N (Part Number) | 47392 |
|---|---|
| EAN | 3303430473923 |
| ETIM | EC001030 |
| SCIP | 8105062d-c949-4aef-a371-66dcfc82357e |
| ECLASS | eClass_10_AKF010013 |
| Weight | 0.782 kg |
| Weight (Package) | 0.84 kg |
Designations
Control Drive Fixed Installation Gear Motor MCH Masterpact Motor Motor Drive NT Remote Control
