10286
Schneider Electric 10286 Pettine di collegamento 24 passi 2P C60 UL 1077
53,46 €
% 81,04 € (34.03% risparmio)
Ordinabile ora, tempo di consegna: 4-6 Giorni lavorativi
Art. No: WST8810005007 P/N: 10286 Produttore: Schneider Electric
Pagamento sicuro
Spedizione rapida
Consulenza specializzata
Info sui prodotti "Schneider Electric 10286 Pettine di collegamento 24 passi 2P C60 UL 1077"
Schneider Electric Pettine di collegamento 24 passi 2P C60 UL 1077
Schneider Electric 10286
EAN 3303430102861
Description

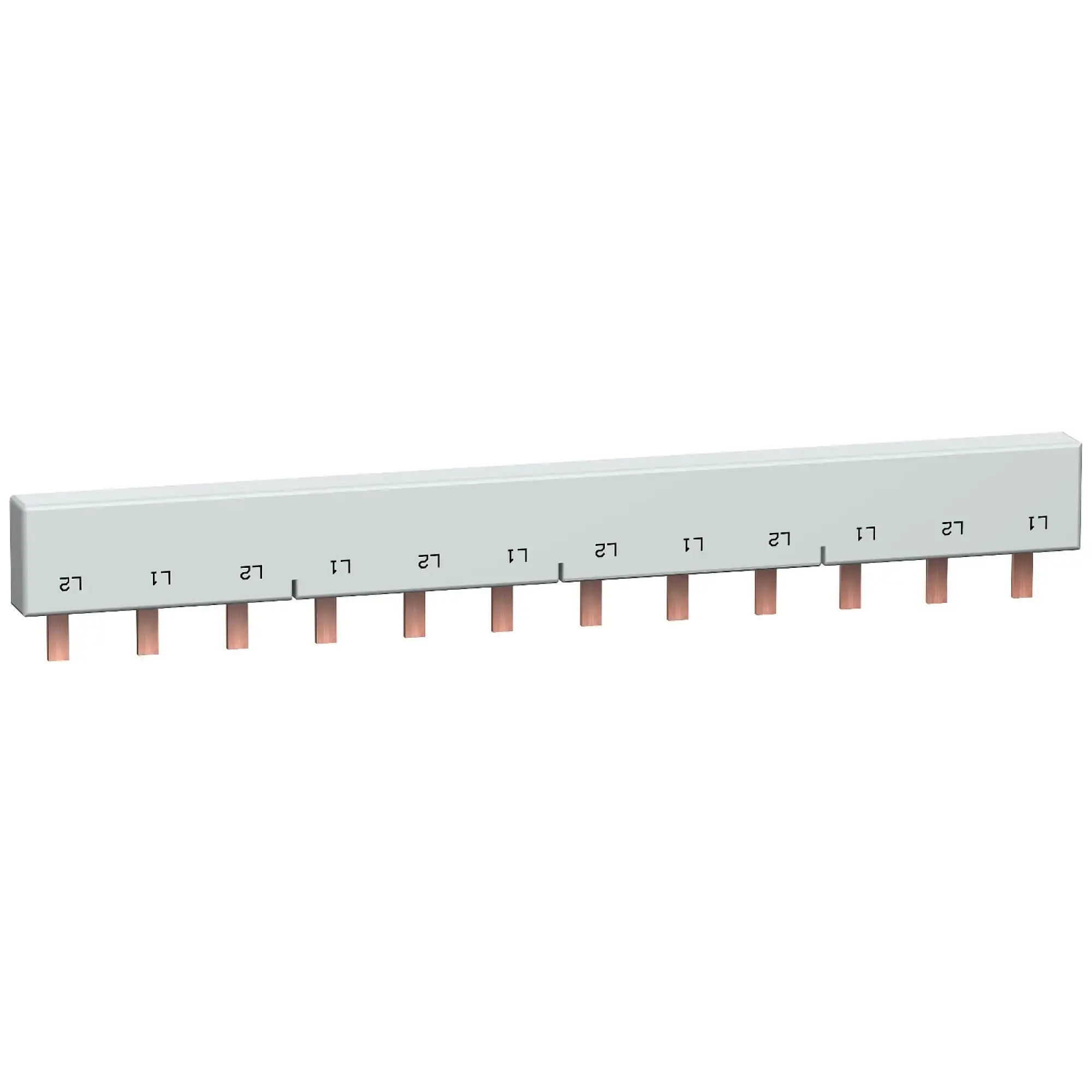

Phase rail bridge Multi 9 for C60 (UL1077). 2-pole, rated current 63A, 12 division units, pitch 18mm, operating voltage (Ue) 480Y/277V, insulation voltage (Ui) 690V. These comb busbars are only used for C60SP circuit breakers according to UL 1077. They generate a power supply directly in the cage of the circuit breaker. Compatible with the interrupting capacity of the C60SP circuit breakers and the additional protection device. The phase rail bridge for C60SP meets the following standards: UL 1077.
Documents & Downloads
Product Attributes
| Anzahl der Phasen | 2 |
|---|---|
| Polzahl | 2 |
| Geeignet für Anzahl Geräte | 6 |
| Teilungsmaß | 18mm |
| Querschnitt | 10mm² |
| Länge | 216mm |
| Zuschneidbar | 1 |
| Breite in Teilungseinheiten | 12 |
| Bemessungsdauerstrom Iu | 63A |
| Ausführung des elektrischen Anschlusses | Stift |
| Isoliert | 1 |
| Bemessungsstoßspannung | -kV |
| Bedingter Bemessungskurzschlussstrom Iq | -kA |
| Max. Bemessungsbetriebsspannung Ue | 480V |
| Bemessungskurzzeitstromfestigkeit Icw | -kA |
| Geeignet für Geräte mit N-Leiter | |
| Geeignet für Geräte mit Hilfsschalter | |
| Farbe | grau |
Technical data
| P/N (Part Number) | 10286 |
|---|---|
| EAN | 3303430102861 |
| ETIM | EC000215 |
| SCIP | 12618b2a-bc0e-4c2d-bb7b-9185c26e01fe |
| ECLASS | eClass_10_ACN992011 |
| Weight | 0.09 kg |
| Weight (Package) | 0.09 kg |
Designations
barra combinata barra combinata orizzontale barra combinata schneider barra combinata sezionabile collegamento elettrico guida din modulare sbarra tagliabile
