VSB29AH
Dehn VSB29AH Three-pole earthing and short-circuiting device TI 16mm² with M10 bolts
380,56 €
% 651,64 € (41.6% risparmio)
Ordinabile ora, tempo di consegna: 2-3 Settimane
Art. No: WST8810208972 P/N: VSB29AH Produttore: DEHN
Pagamento sicuro
Spedizione rapida
Consulenza specializzata
Info sui prodotti "Dehn VSB29AH Three-pole earthing and short-circuiting device TI 16mm² with M10 bolts"
Dehn Three-pole earthing and short-circuiting device TI 16mm² with M10 bolts
Dehn VSB29AH
EAN
Descrizione

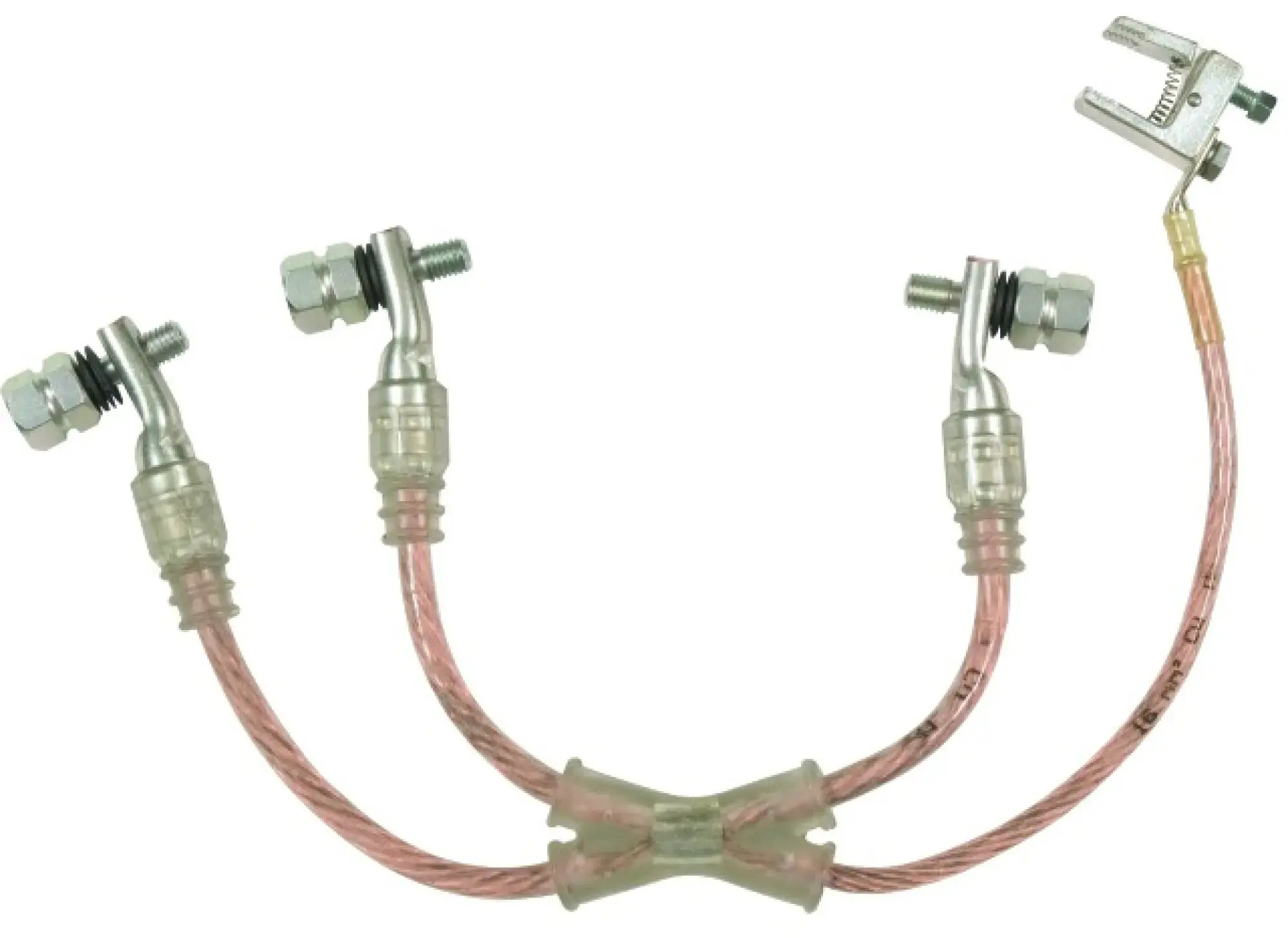

Earthing and short-circuiting device TI. Partly insulated type. Spring-loaded earth clamp, clamping range up to 24 mm and fixing via adjustable handle Part No. 745 921. Screw-on cable lugs with M10 hexagon pin on the phase cable end, to be screwed onto earthing cartridges with M10 connection of service entrance boxes. Variant No. VSB29AH of EaS device. Other cable lengths can be selected online via the earthing and short-circuiting configurator at www.dehn-international.com/en/EaS.
Documenti e download
Attributi del prodotto
Dati tecnici
| P/N (Codice articolo) | VSB29AH |
|---|---|
| ETIM | EC002788 |
| Peso | 0.81 kg |
| Peso (pacco) | 0.97 kg |
Designazioni
Arbeitsschutz Earthing and Short-Circuiting Devices Safety Equipment / Arc fault protection
