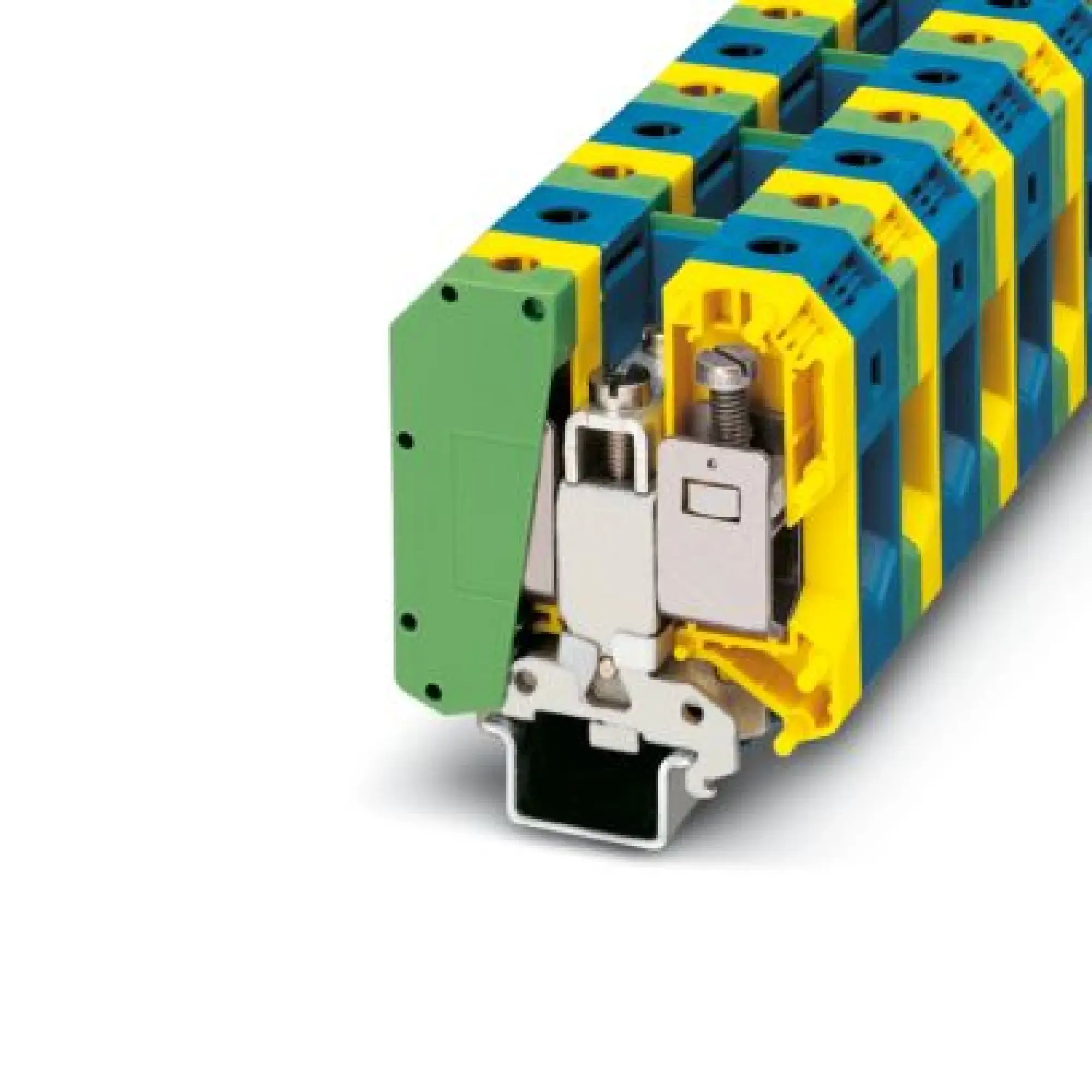

Phoenix Contact 3009163 Installation protective conductor terminal block UKH 50-PE/N
€29.17
% €40.79 (28.49% saved)
Available, delivery time: 4-6 Bussines days
Art. No: WST8810200619 P/N: 3009163 Manufacturer: Phoenix Contact
Secure Payment
Fast Shipping
Expert Advice
Product information "Phoenix Contact 3009163 Installation protective conductor terminal block UKH 50-PE/N"
Phoenix Contact Installation protective conductor terminal block UKH 50-PE/N
Phoenix Contact 3009163
EAN 4017918091699
Description
Installation protective conductor terminal block, PE/N block, consisting of a green-yellow protective conductor terminal block and a blue terminal block with screw bridge, nom. voltage: 1000 V, nominal current: 150 A, Screw connection, Rated cross section: 50 mm², cross section: 16 mm² - 70 mm², mounting type: NS 35/7,5, NS 35/15, NS 32, color: green-yellow
Documents & Downloads
Product Attributes
| Anschließbarer Leiterquerschnitt feindrähtig ohne Aderendhülse (mm²) | 25 |
|---|---|
| Anschließbarer Leiterquerschnitt feindrähtig mit Aderendhülse (mm²) | 25 |
| Anschließbarer Leiterquerschnitt eindrähtig (mm²) | 16 |
| Anschließbarer Leiterquerschnitt mehrdrähtig (mm²) | 25 |
| Bemessungsstrom In (A) | 150 |
| Bemessungsspannung (kV) | 1000 |
| Ausführung elektrischer Anschluss 1 | Schraubanschluss |
| Ausführung elektrischer Anschluss 2 | Schraubanschluss |
| Montageart | sonstige |
| Werkstoff des Isolierkörpers | sonstige |
| Brennbarkeitsklasse des Isolierstoffs nach UL94 | V2 |
| Breite (mm) | 39.95 |
| Höhe (mm) | 81.4 |
| Tiefe (mm) | 75.85 |
| Grundfarbe | sonstige |
| Mit PE-Funktion | 1 |
Technical data
| P/N (Part Number) | 3009163 |
|---|---|
| EAN | 4017918091699 |
| ETIM | EC001329 |
| Weight | 0.07 kg |
| Weight (packaged) | 0.33 kg |
